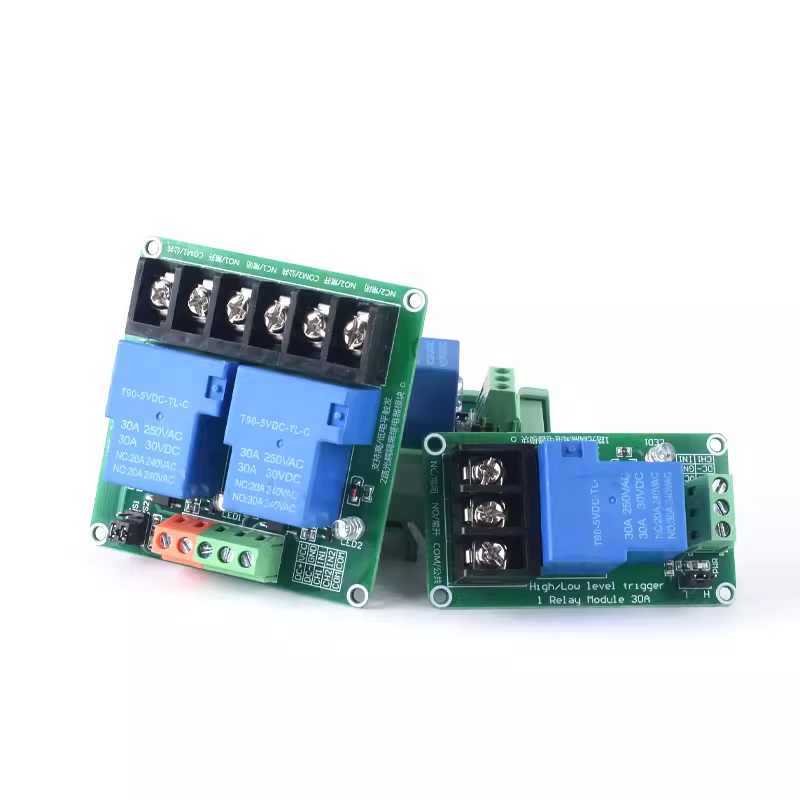

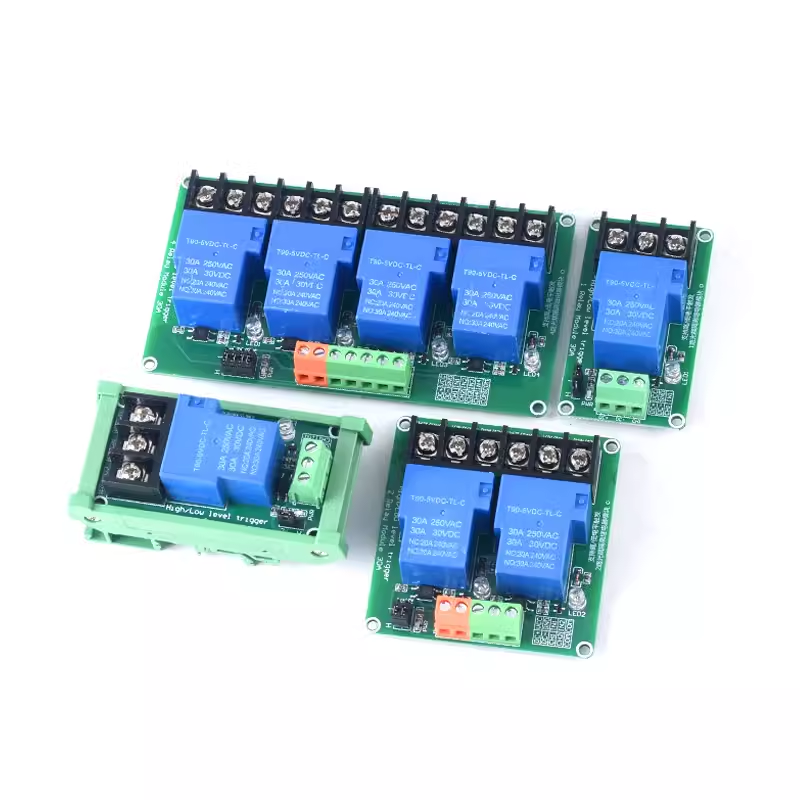

1 /2 /4 way 30A relay module with optocoupler isolation high current support high and low level 5V12V24V

30A high and low trigger relay
Support high and low level trigger PLC automation control

Product Introduction
1. The module adopts authentic high-quality 30A relay, normally open interface maximum load: AC 250V/30A, DC 30V/30A;
2. Using patch optocoupler isolation, strong driving ability, stable performance; The trigger current is 5MA
3. The working voltage of the module is 5V, 12V, 24V to choose from;
4, the module can be triggered by setting the high or low level through the jumper
5, the interface design is user-friendly, all interfaces can be directly connected through the wiring terminal is very convenient

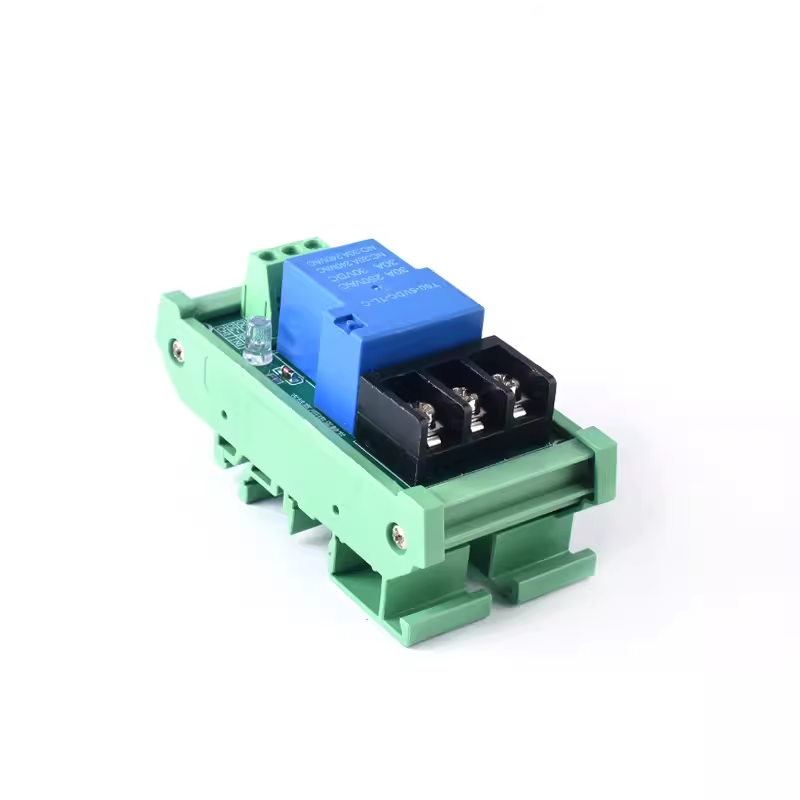

6. Module size :72MM*40MM*24MM(length * width * height) Module size (with module rack):86MM*43MM*45MM
7. Net weight :46G; 82G(including module frame)8. Hole 3MM, spacing 66.5*34.5MM
