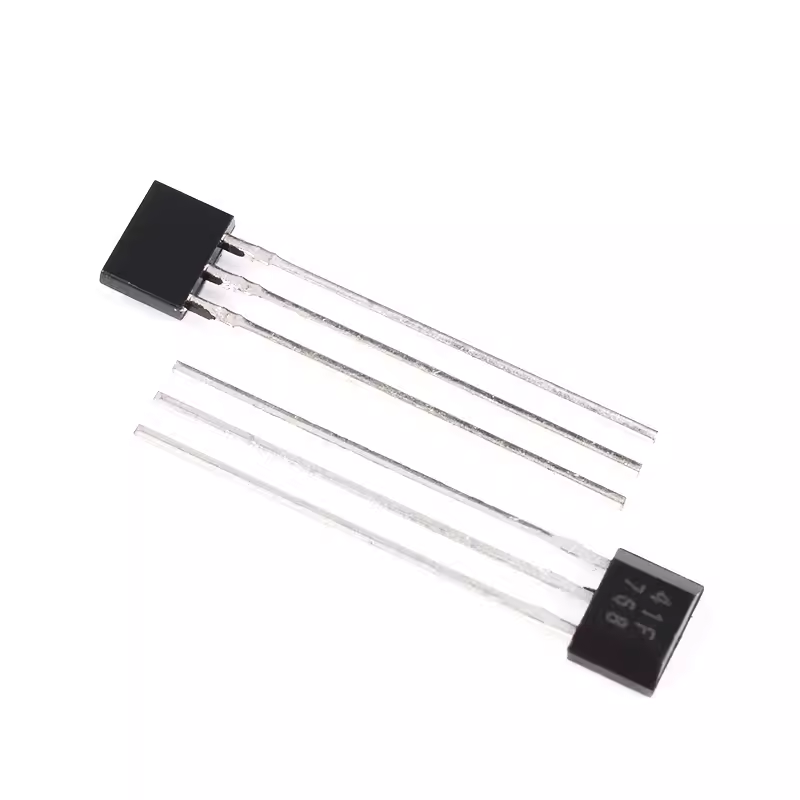

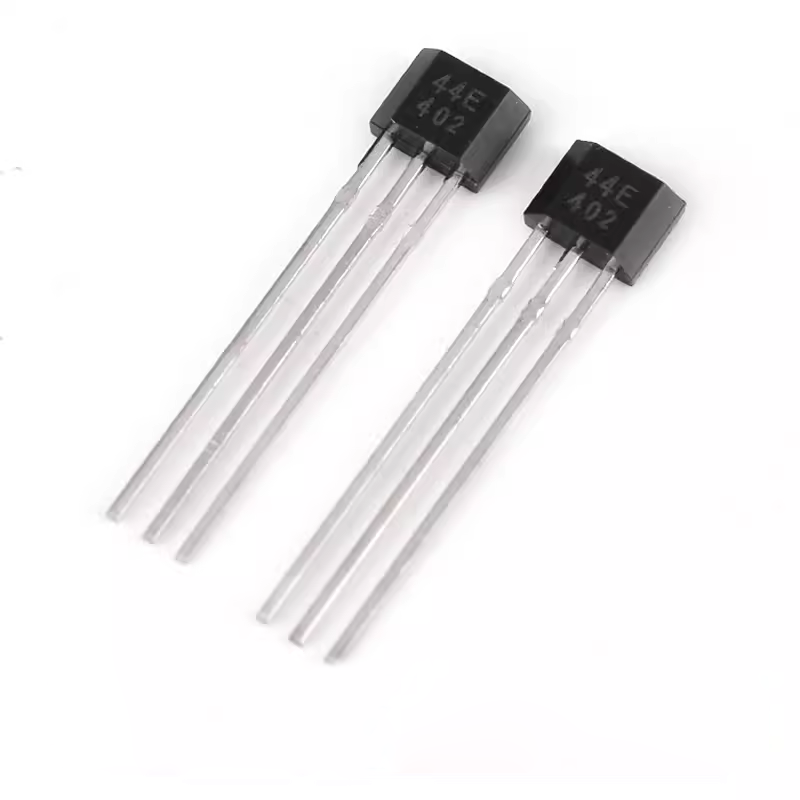

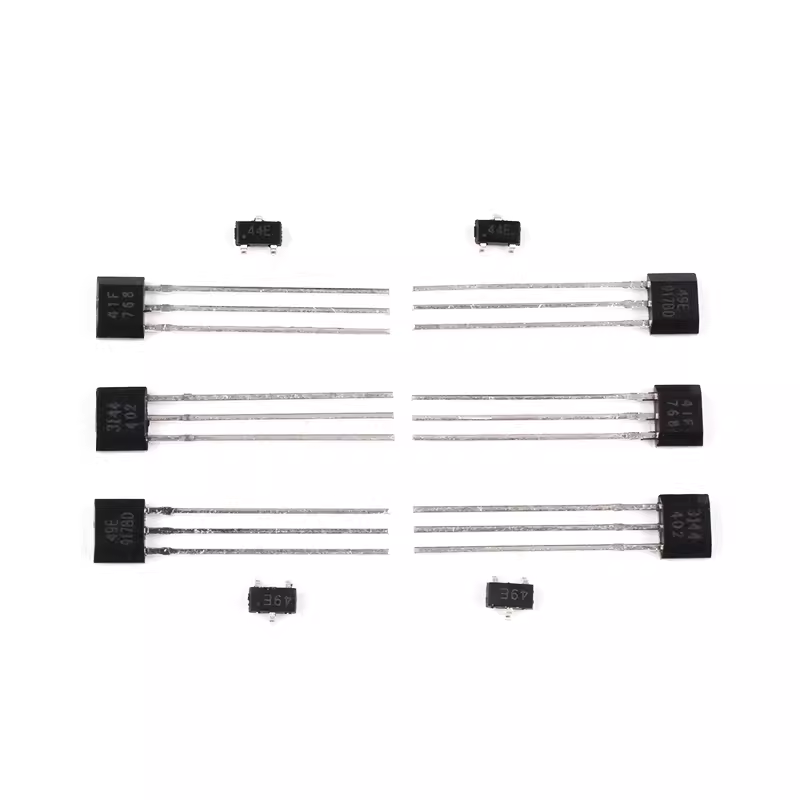

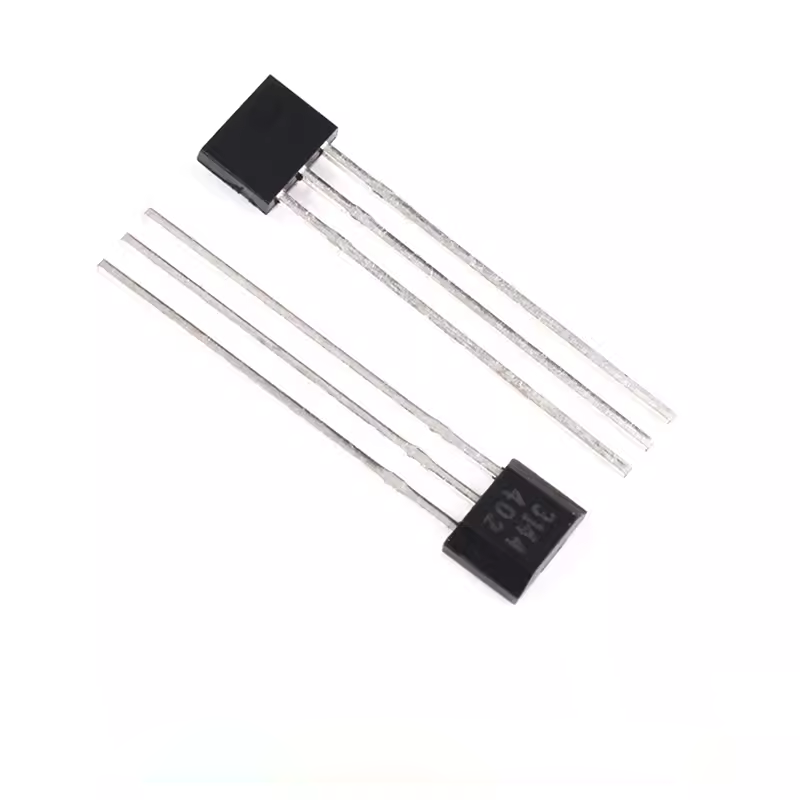

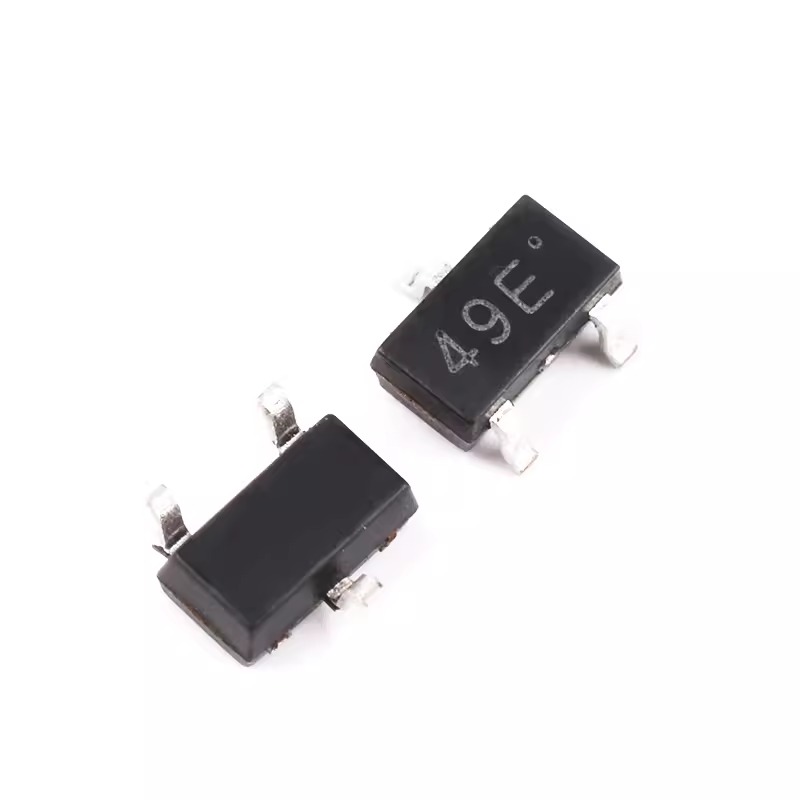

Hall sensor A3144/44E switching element S49E linear TO 92 in-line SOT23 bipolar SH41F

Product Description
A3144E Hall element 44E OH44E Hall sensor Hall switch integrated circuit application Hall effect principle, the use of semiconductor integrated technology to manufacture magnetic sensitive circuit, it is a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger, temperature compensation circuit and open collector output stage composed of magnetic sensitive sensing circuit, its input is magnetic induction, output is a digital voltage signal No.
Product Features
Small volume, high sensitivity, fast response speed, good temperature performance, high accuracy, high reliability.
Typical Applications
Non-contact switch, automotive igniter, brake circuit position, speed detection and control, safety alarm device textile control system

Power supply voltage VCC:24V
Output reverse breakdown voltage VCE: 50V
Output low level current IOL: 50mA
Working environment temperature TA: E :-20~85℃, L :-40~150℃ storage
Temperature range TS: -65~150° C
