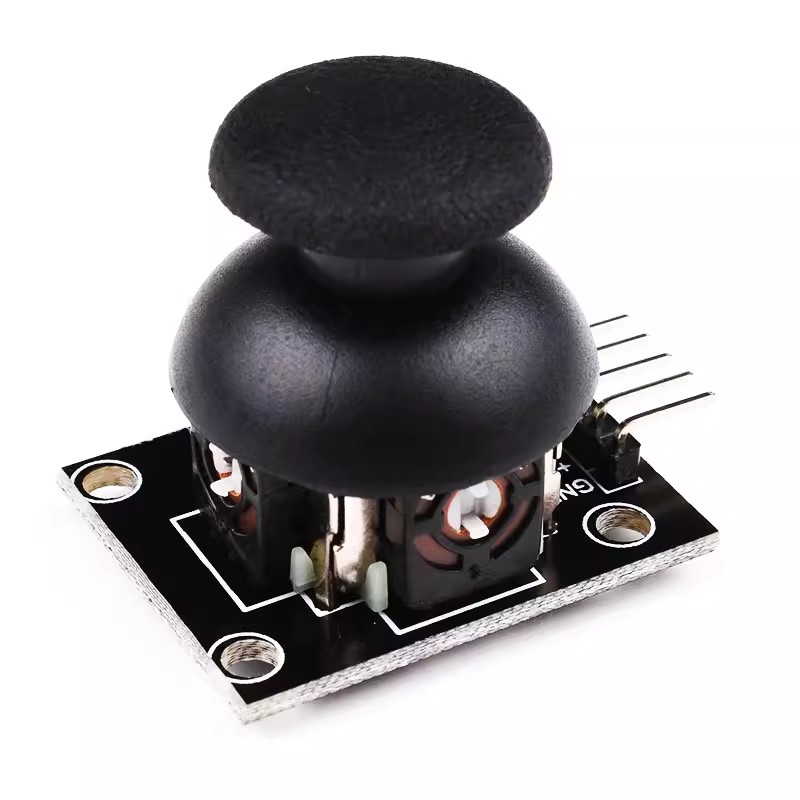

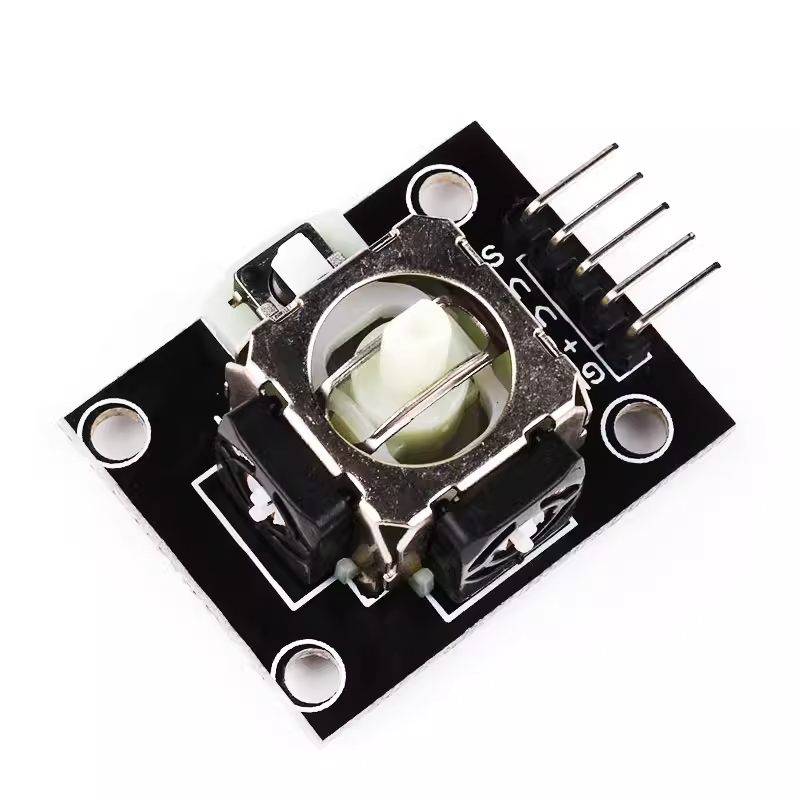

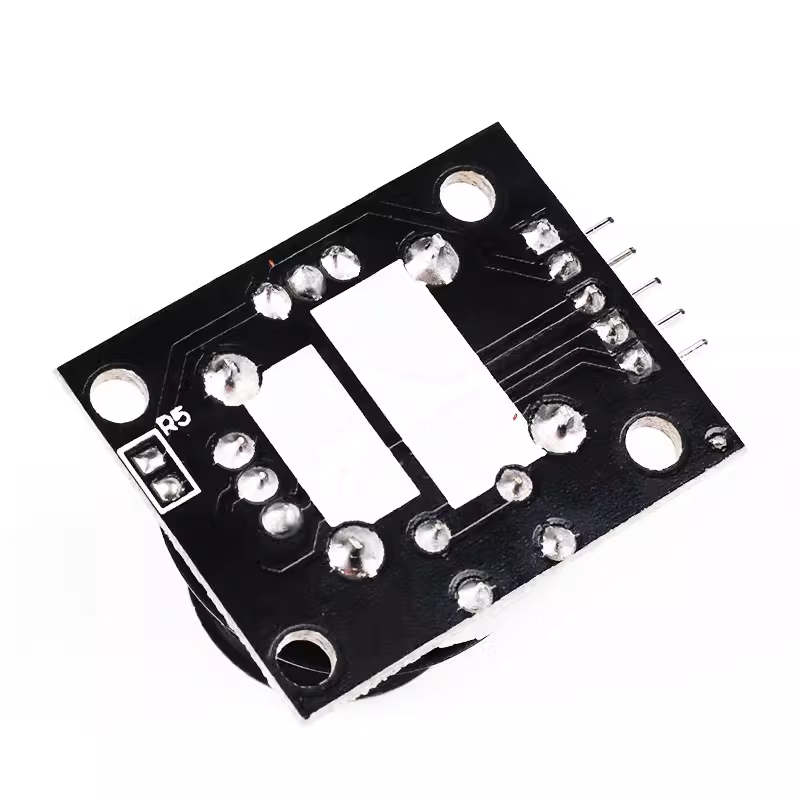

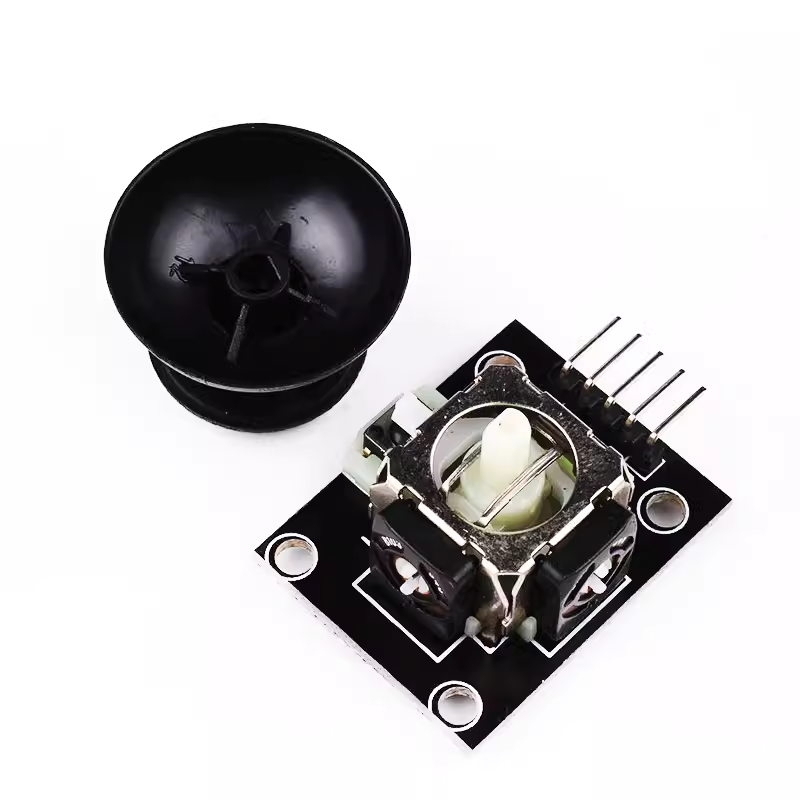

Dual-axis button rocker sensor PS2 game rocker control lever transmission module SMT32 electronic blocks

PRODUCT PARAMETERS
1. Input voltage range: DC 3.3V to 5V
2. Output signal: the module has two analog output and one digital output interface, the output value corresponds to (X,Y) biaxial offset, its type is analog; The key indicates whether the user presses on the z-axis or not, and its type is the digital switching quantity.
3. It can be programmed by Arduino controller, and the sensor expansion board can be plugged to complete creative remote control interactive works.
4· The cross rocker is a bidirectional 10K resistor, and the resistance value of the tap changes with the direction of the rocker. This module uses 5V power supply, and the readout voltage of X and Y is about 2.5V in the original state. When pressed along with the arrow direction, the readout voltage value decreases, and the limit is OV.

In fact, this module is a potentiometer, X,Y dimensional data output is analog electrical port read voltage value. The figure above does not show the two-dimensional data output, the dimension output is only 0 and 1, through the combination of a key press. We're using it in Arduino and we're using X, Y dimensions and we're using two analog ports to read their values and we're using Z dimensions and we're using a digital port, we're using power and ground.
