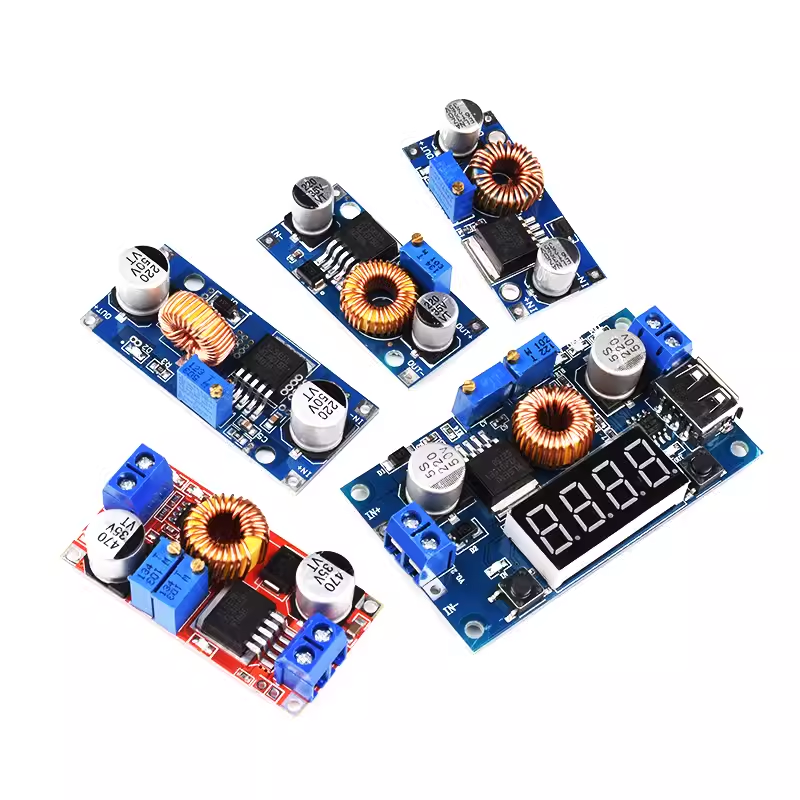

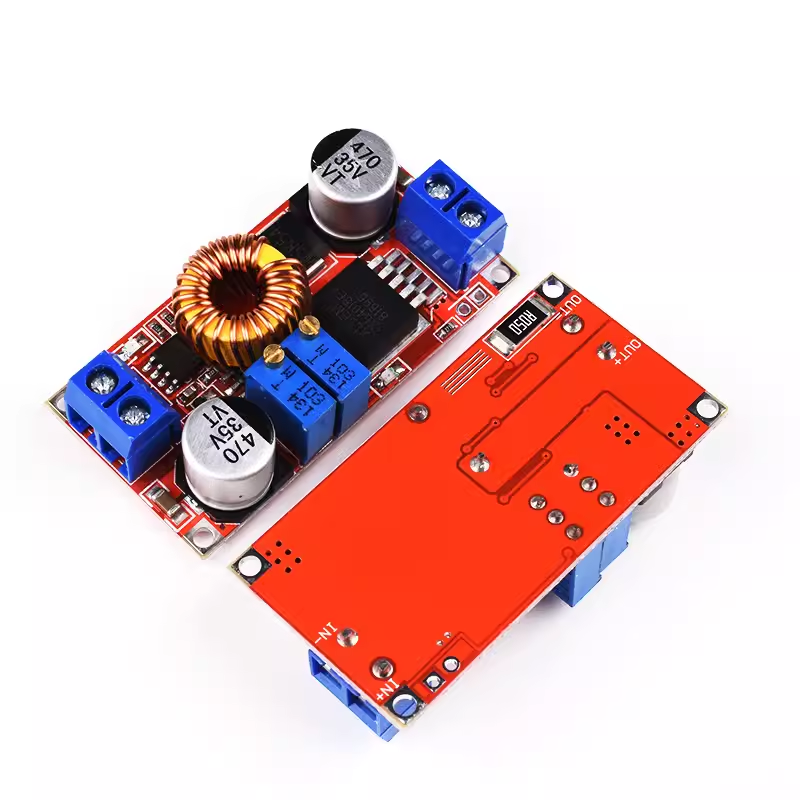

XL4005/4015 adjustable buck power supply module DC-DC regulated voltage 5~35V constant current constant voltage 5A large current

Product model :XL4005 buck module

Input voltage: 5-32V
Output voltage: 0.8-30V continuously adjustable
Output current :0-5A, recommended to use within 3.5A.
Output power: recommended in 75W, more than 50W, please add heat sink.
Operating temperature :-40~+85° C
Operating frequency: 300KHz
Conversion efficiency: up to 92%(efficiency is related to input and output voltage, current, pressure difference)
Load adjustment rate: S(1)<0.8%
Voltage regulation rate: S(u)<0.8%
Power indicator: None
Short circuit protection: Yes (limit current 8A)
Over temperature protection: Yes (automatically turn off output after over temperature)
Input reverse protection: None (if necessary, please put a high current diode in the input string)
Product size :43.6mm*21.2*13(length * width * height), 4mm*2 in positioning hole
